- Battery test line Carrier machine
Battery test line Carrier machine

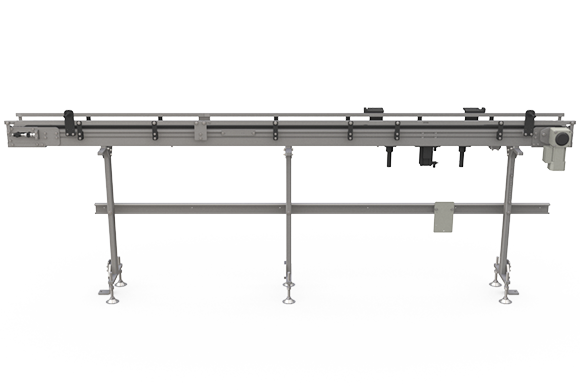

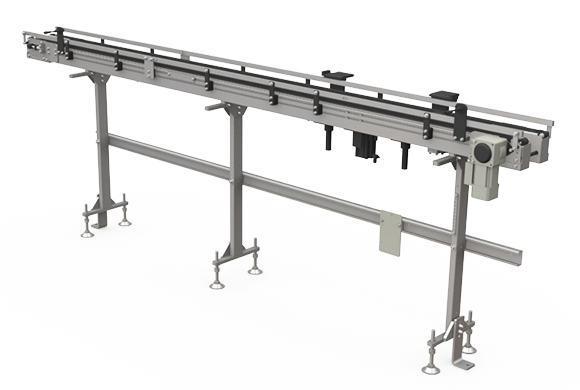

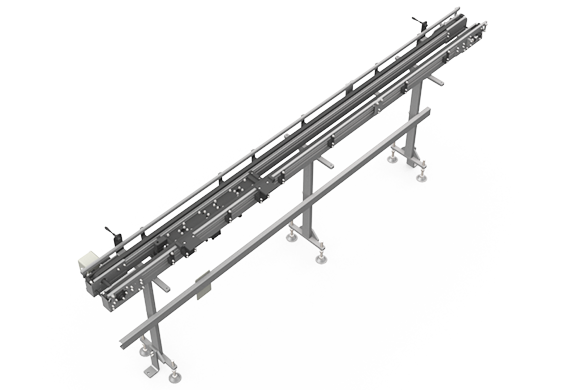

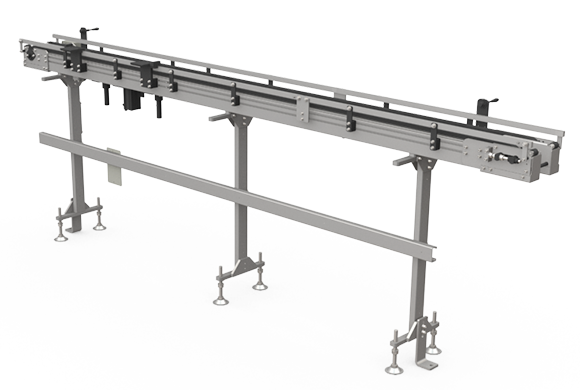

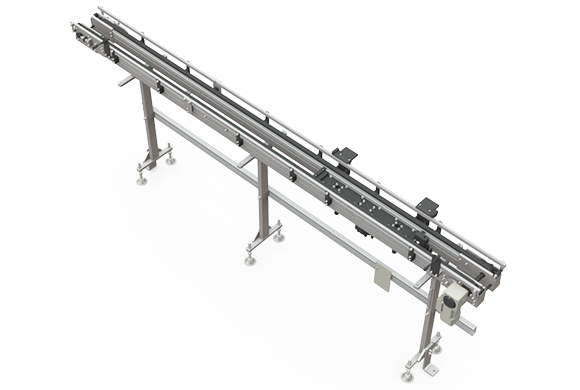

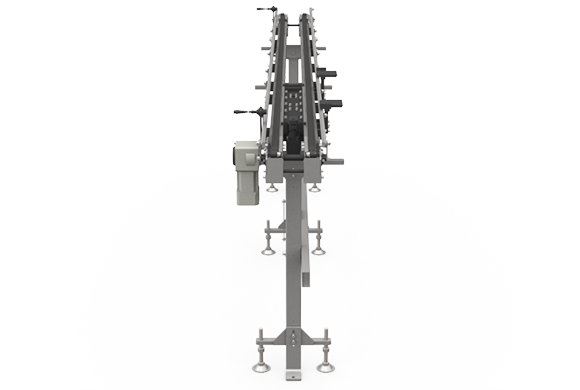

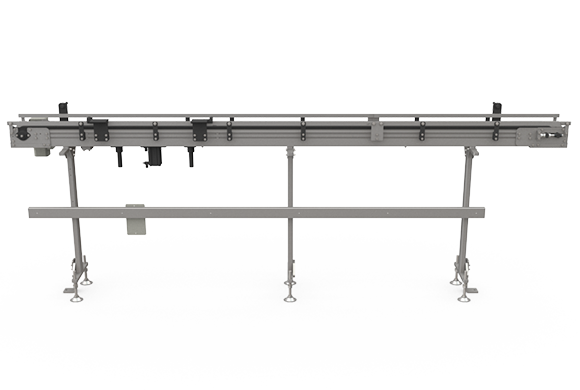

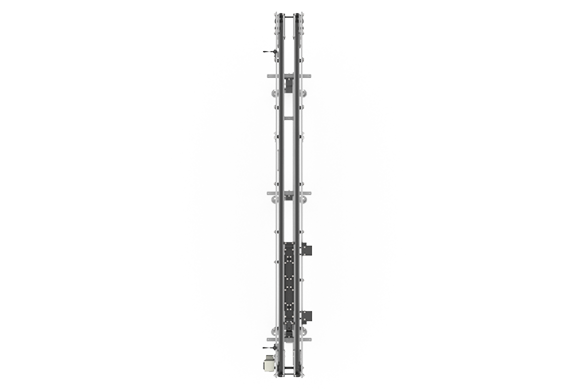

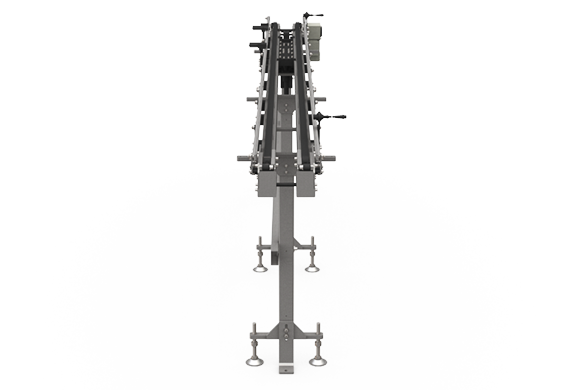

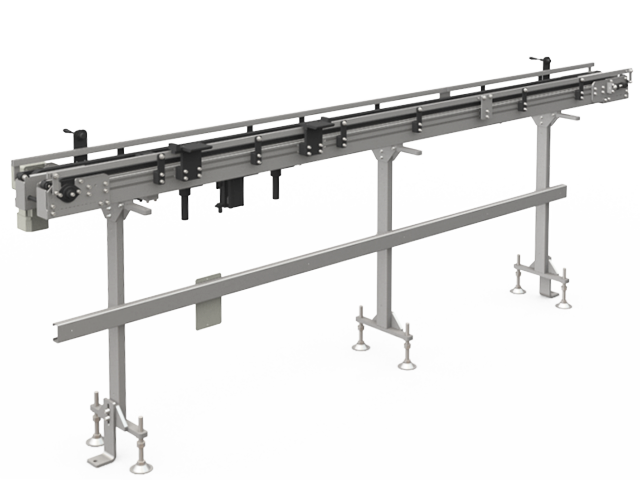

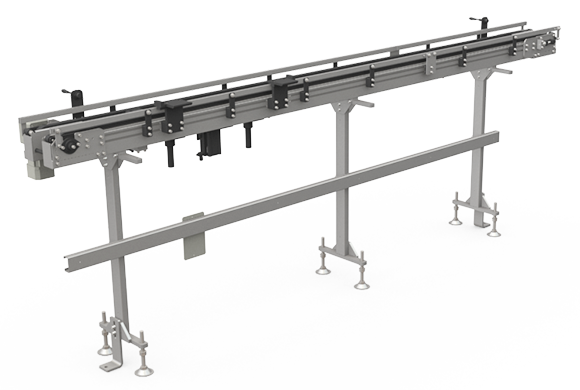

As it supports clean rooms, it is suited for delivery of batteries. The chain method delivery is adopted.
| Transportable weight | 20kg |
|---|---|
| Pallet width | Up to 250mm |
| Pallet length | Up to 700mm |
| Motor specification | AC200V Induction motor |
| Chain | Resin chain |
| Conveyor length | Up to 6000mm |
| Conveyor speed | 12m/min |
Tohoku Area: Shinmei Tohoku Machinery Co., Ltd.

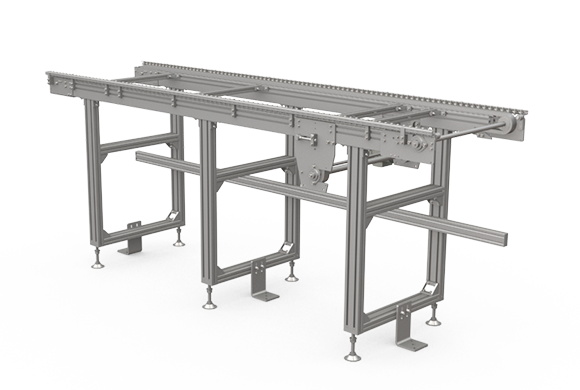

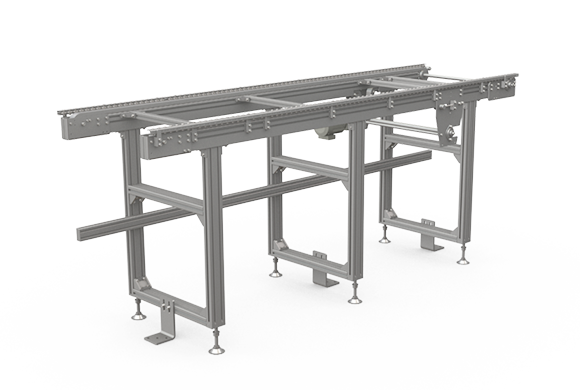

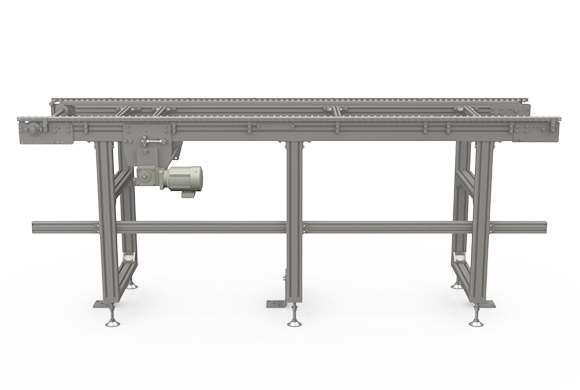

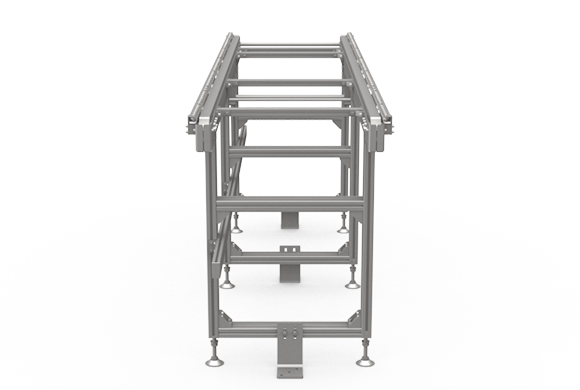

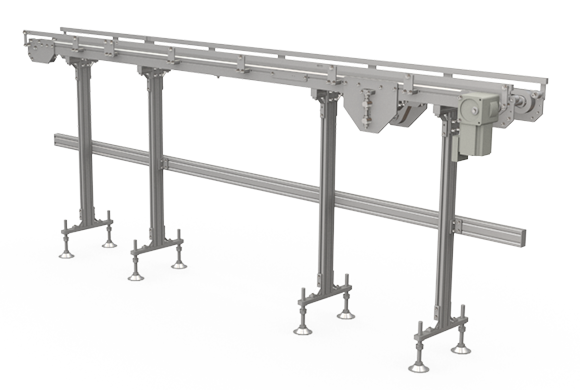

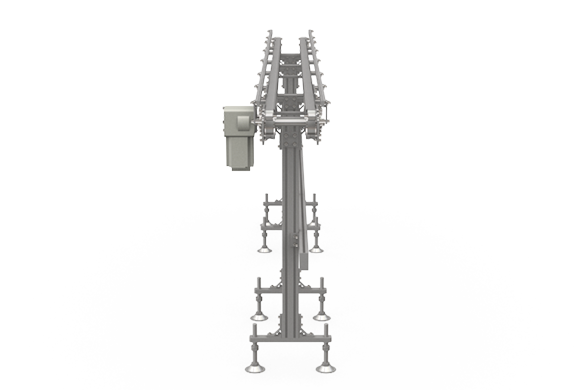

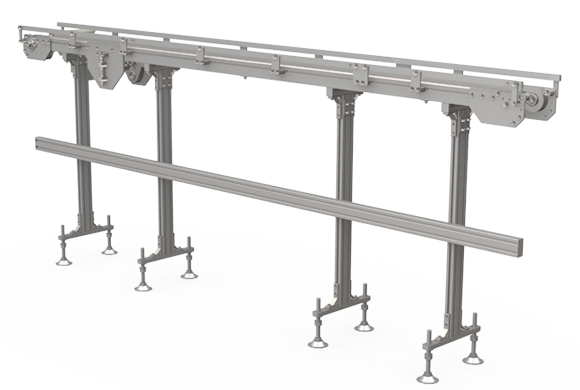

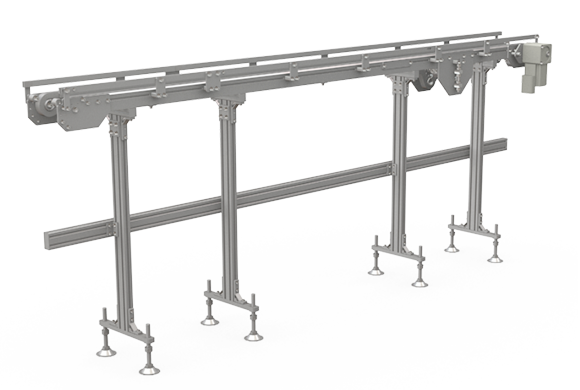

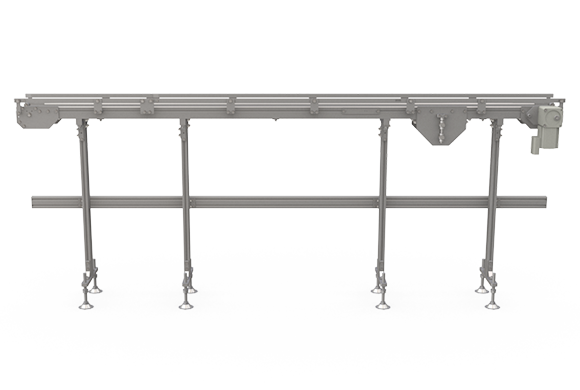

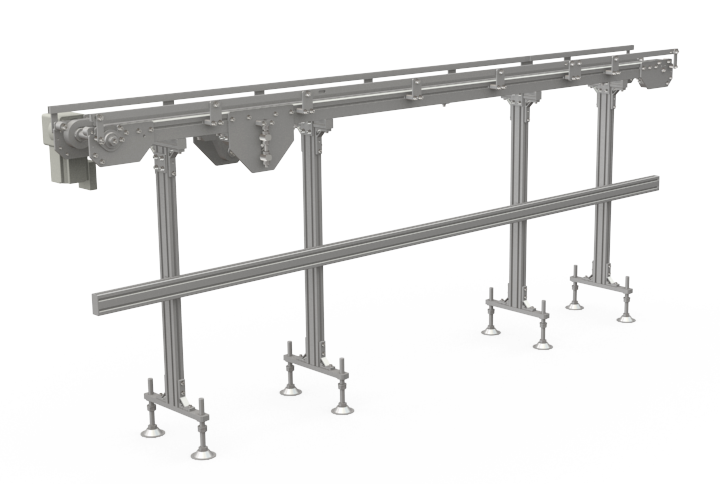

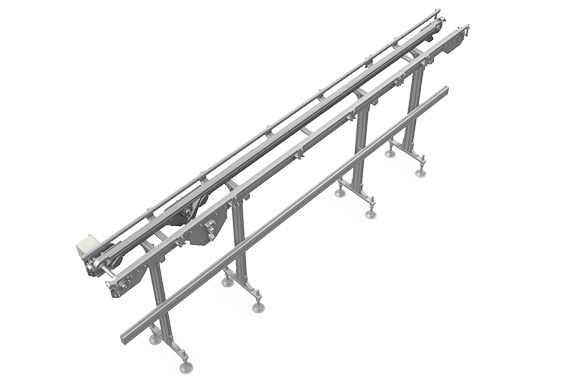

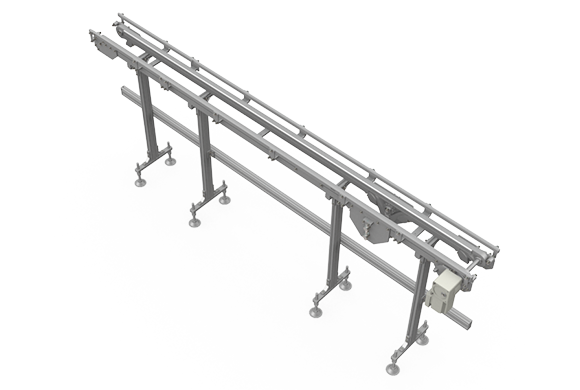

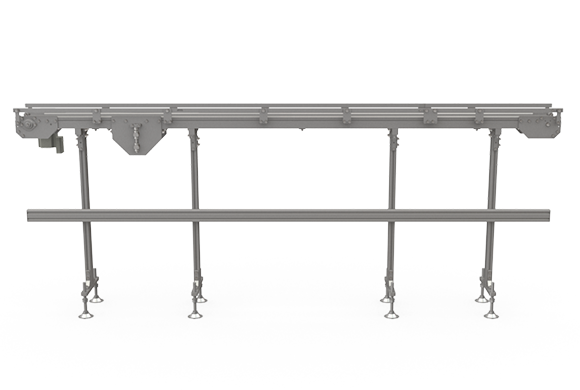

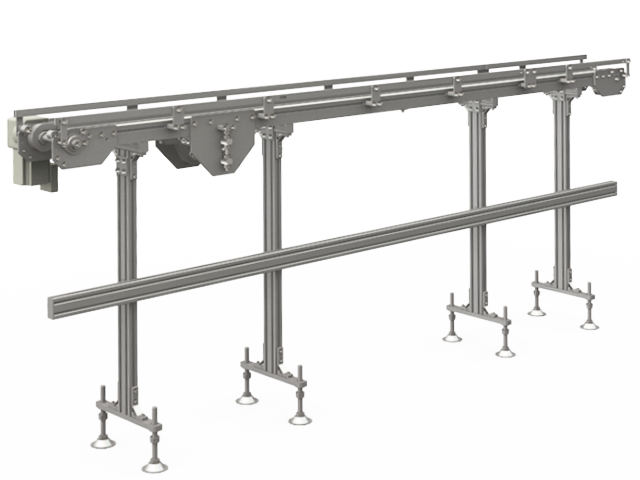

As it supports clean rooms, it is suited for delivery of batteries. As it uses the free flow chain, it allows you to stock pallets.
| Transportable weight | 200kg |
|---|---|
| Pallet width | Up to 700mm |
| Pallet length | Up to 500mm |
| Motor specification | AC200V Induction motor |
| Chain | RS40-LMC-NP-1LSRP-T |
| Conveyor length | Up to 6000mm |
| Conveyor speed | 12m/min |
Tohoku Area: Shinmei Tohoku Machinery Co., Ltd.

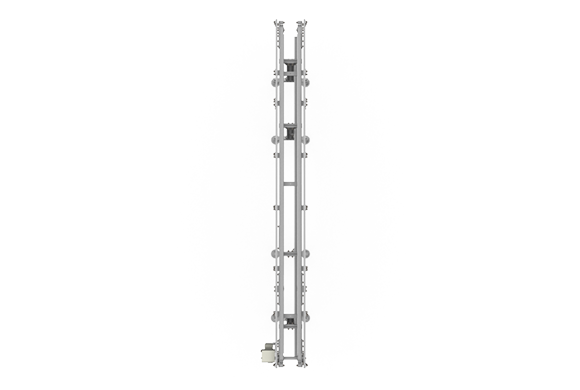

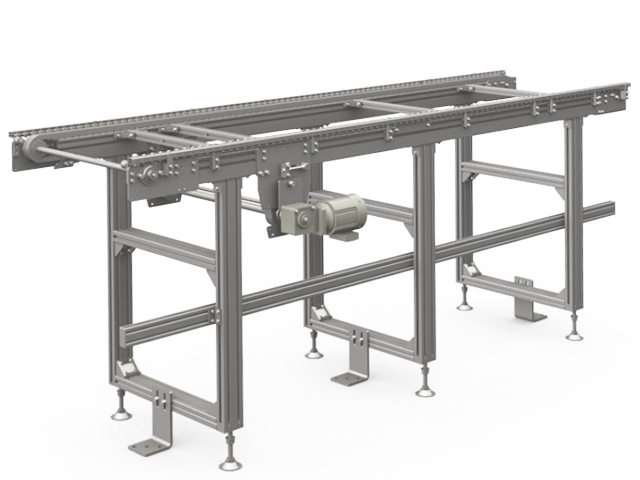

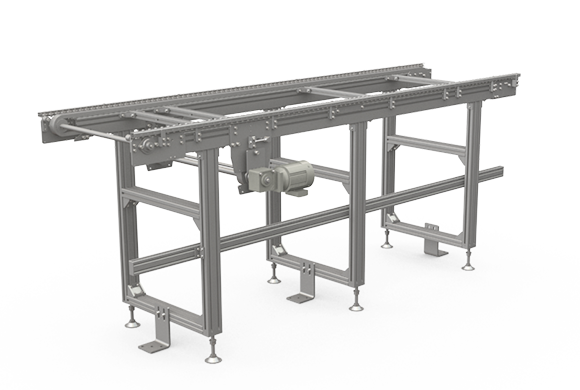

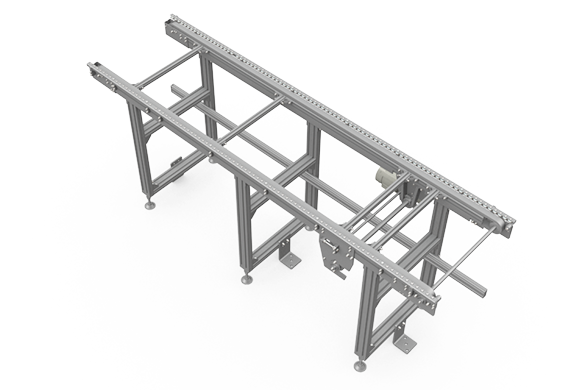

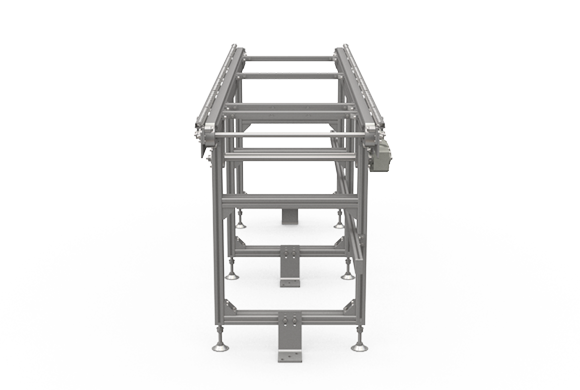

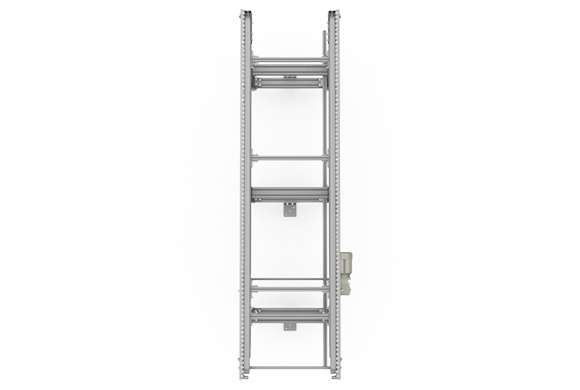

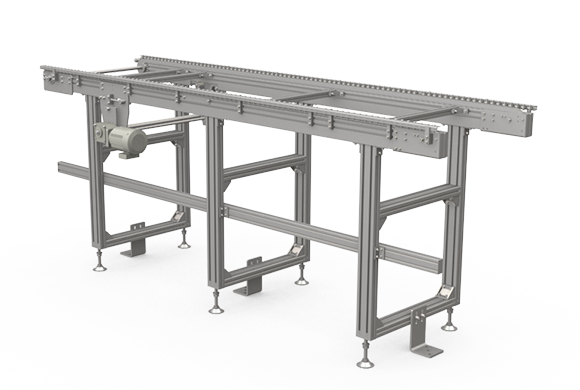

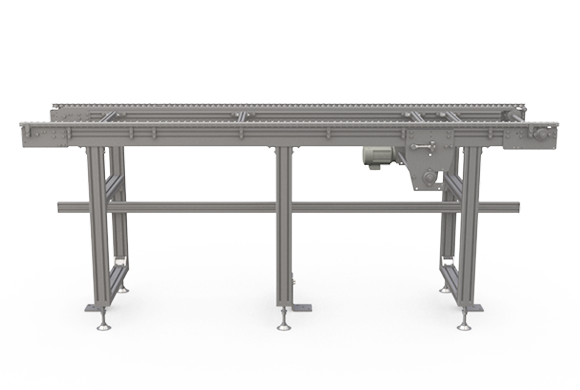

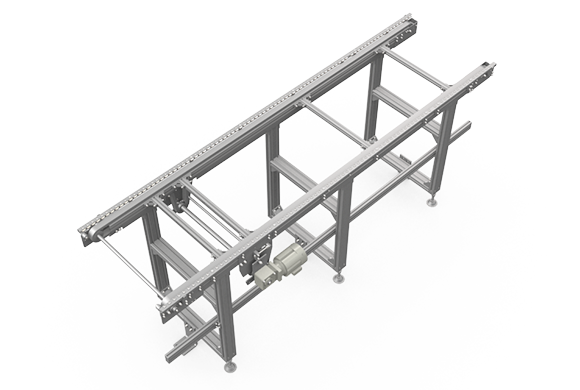

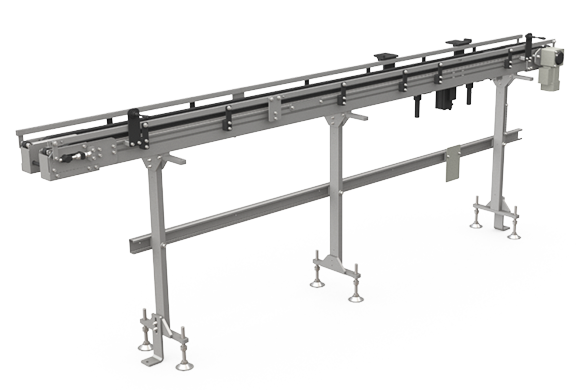

As it supports clean rooms, it is suited for delivery of batteries. As it uses the free flow chain, it allows you to stock pallets.
| Transportable weight | 150kg |
|---|---|
| Pallet width | Up to 250mm |
| Pallet length | Up to 700mm |
| Motor specification | AC200V Induction motor |
| Chain | RF2030VRP-LMC-HCP |
| Conveyor length | Up to 7000mm |
| Conveyor speed | 12m/min |
Tohoku Area: Shinmei Tohoku Machinery Co., Ltd.
